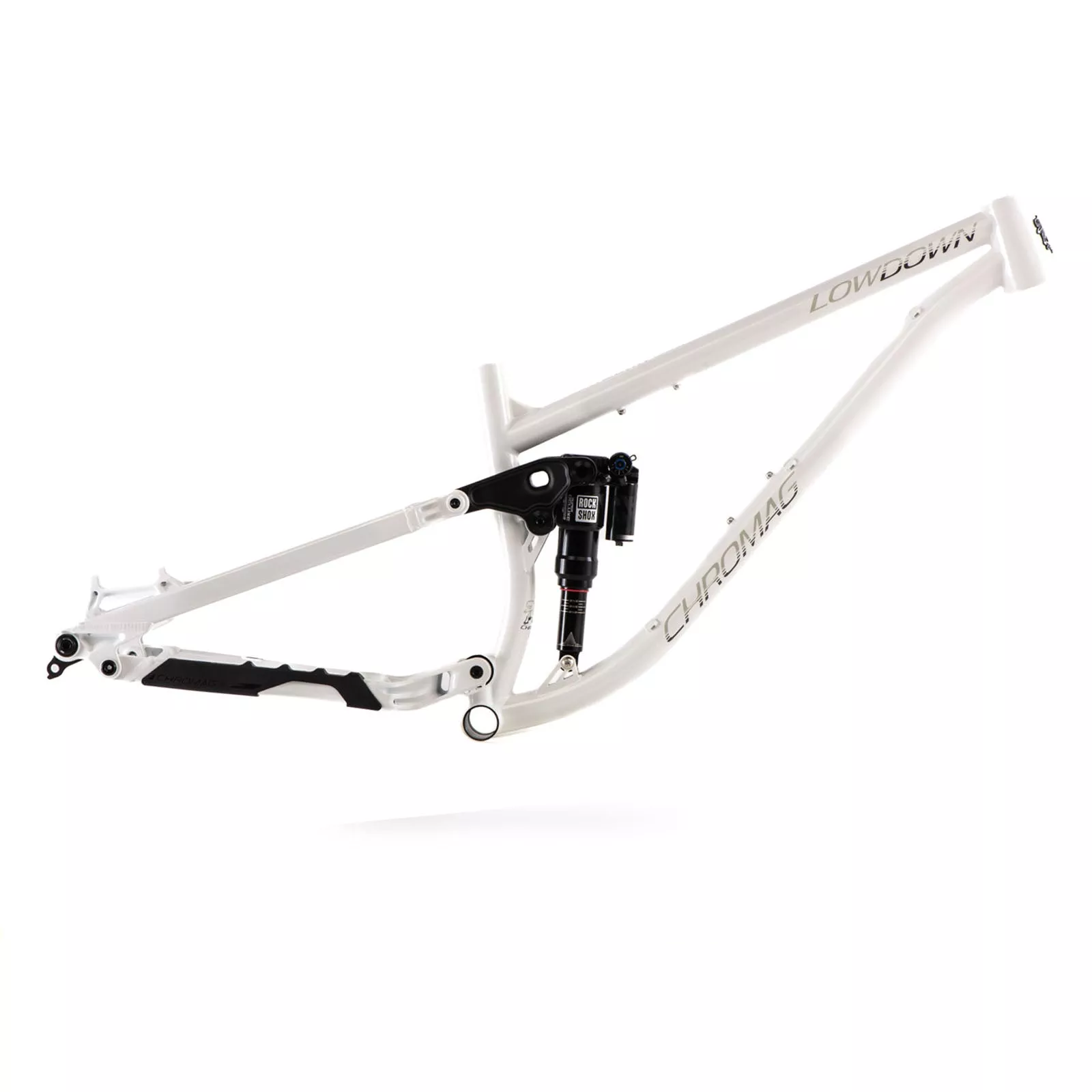

The Lowdown takes everything we learned developing our full suspension line, and directs it into a long travel bruiser. We still have a penchant for 4130 steel, 29″ wheels, slack head tube angles (63.5°) and steeper seat tube angles (79°), but now we’ve paired all of that with 170mm up front and 158mm out back.
The way we see it, we’re still drawing strongly on our hardtail roots and design philosophy, we just removed one more constraint.
Keep scrolling for more details!
NEW! Our Mullet link allows you to run a 27.5″ rear wheel, while maintaining the same geometry, travel and kinematics. 27.5″ rear wheel is sold separately.
Product Details
- Fork: Rock Shox™ ZEB Ultimate 170mm, 15x110mm, 44mm, 1 Token
- Shock: Rock Shox™ Super Deluxe Ultimate 205x60mm, 2 Tokens, LN M Tune
- Stem: Chromag HiFi35 35mm Black
- Bar: Chromag OSX35 25mm Rise
- Headset: Cane Creek 40
- Crankset: SRAM™ X0 Eagle T-Type 165mm, 30t
- Brakes: SRAM™ SRAM™ Maven Silver
- Rotors: SRAM™ Centerline 2.0 200mm
- Shifter: SRAM™ AXS Ultimate Pod 12 Speed
- Cassette: SRAM™ X0 Eagle T-Type 12 Speed 10-52T
- Chain: SRAM™ X0 Eagle T-Type 12 Speed Flat Top
- Derailleur: SRAM™ X0 T-Type Eagle 12 Speed
- BB: DUB 73mm Threaded
- Wheels: Chromag BA30v2 / R6
- Tires: Maxxis DHF/DHR Double Down
- Seatpost: OneUp V3 – S 150mm; M 180mm; M/L, L 210mm; XL 240mm
- Saddle: Chromag Trailmaster Black
- Grips: Chromag Format Black
- Pedals: –
- Frame Construction: 4130 Cr-Mo Steel / 6066 Aluminum
- Rear Travel: 158mm
- Wheel Size: 29”
- Rear Axle: 180mm, M12 X 1.00mm – Boost 148 (Included)
- BB Type: BSA 73mm Threaded
- Headset (Frame): 44-56mm
- Linkage: Rocker Driven Horst Linkage
- Shock Size: 205 x 60mm Trunnion
- Lower Shock Hardware: 20 x 8mm
- Hanger: SRAM™ UDH™
- Recommended Fork Offset: 42mm
- Recommended Fork Travel: 170mm
- Seatpost Size: 31.6mm
- Seatclamp Size: 35mm
- Bottle Cage Mount: Yup!
- Gear Mount: Yup!
- Brake Mount: 180mm Post
- Frame Weight: M/L 10.6 Lbs (With shock, axle, hanger, CS protector)
- Origin: Taiwan
- Head Angle: 63.5°
- Fork Offset: 42MM
- Seat Angle: 79°
