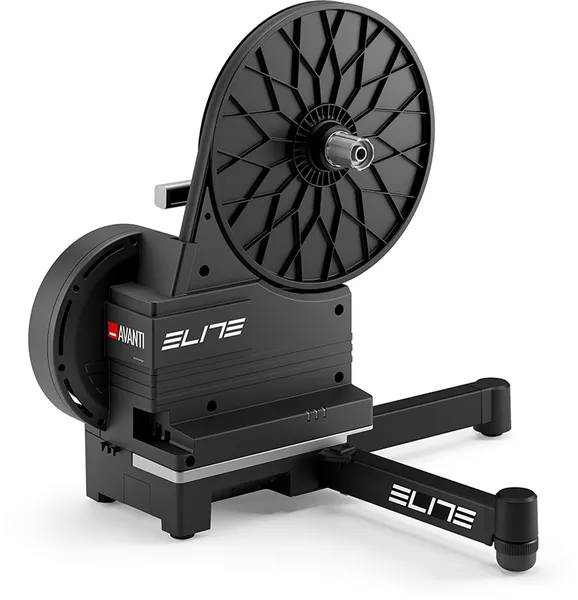

Avanti is Elite’s plug-and-play smart direct-drive trainer built for realistic,>
Key features and ride feel
Integrated OTS power meter with ±1% accuracy for consistent training and testing data
Simulates climbs up to 18% with automatic resistance adjustment for realistic grade changes
10Hz data transmission (power/speed/cadence) for quicker responsiveness and app synchronization
Zwift Supertuck support by resetting power quickly when you stop pedaling
Sensorless cadence, speed, and power reporting (no extra bike-mounted sensors required)
Quiet direct-drive design with redesigned mechanics and an aerodynamically optimized flywheel
Included black Flex Feet allow lateral micro-oscillation (4.5°) to better mimic natural bike sway (red 7° feet are compatible but not included)
Connectivity and control
Wireless protocols: ANT+ (FE-C, Power, Speed & Cadence), Bluetooth (FTMS, Power, Speed & Cadence), WiFi (2.4GHz Direct Connect Protocol)
Dual Bluetooth channels let you connect to two Bluetooth devices at once (example: training app plus a bike computer)
Heart rate and cadence bridge functions can relay sensor data through the trainer (helpful for devices with limited Bluetooth sensor slots, like Apple TV)
WiFi setup through the My E-Training app with automatic reconnect; firmware can update automatically at startup
Optional wired-network capability via Elite Gateway Wired Ethernet Dongle (not included)
Control via smartphone, tablet, bike computer, sports watches, Windows and Mac (ANT+ and/or Bluetooth on computers)
Compatible with My E-Training and popular third-party platforms like Zwift, TrainerRoad, Kinomap, and more
Stand-alone training modes (no app required)
Plugged in but unconnected: you can preset incline values up to +18% in My E-Training and ride them even when disconnected
No connection or power: you can preset resistance levels (1–16) in My E-Training beforehand for uninterrupted sessions
Bike, axle, and drivetrain compatibility
Bike types: road, gravel, mountain, and city bikes; also compatible with Elite’s Square smart frame and Zwift Ride when using the Zwift Cog
Included axle adapters: quick release Ø 5 x 130–135, thru-axle Ø 12 x 142
Additional axle adapters available separately (not included): 10×135–12×135, Specialized SCS 12×135, Boost 12×148, Super Boost 12×157
Cassette note: sprocket cassette is not included
Cassette compatibility (freehub included): Shimano/SRAM 9/10/11 speed, Shimano 12-speed road, SRAM SX 12-speed, SRAM NX 12-speed; Zwift Cog supported as an alternative to a cassette
Optional freehub bodies available separately (not included): Shimano Micro Spline, Campagnolo, SRAM XD/XDR
Di2 integration (select Shimano electronic systems)
With supported Shimano Di2 setups, you can adjust resistance in stand-alone powered mode or temporarily pause resistance while riding on virtual platforms using electronic shift buttons
Supported models include Dura-Ace Di2 9200 (12-speed) and Ultegra Di2 8100 (12-speed); some 11-speed Di2 setups require an additional wireless unit for ANT+/Bluetooth LE connectivity
What’s included
Elite Avanti smart direct-drive trainer
Travel Block front wheel support
Axle adapters: QR Ø 5 x 130–135 and thru-axle Ø 12 x 142
Integrated adapter drawer storage (includes a disc brake pad spacer among the stored mounting components)
Coupon card that provides a 12-month My E-Training subscription and trials on other platforms
Note: sprocket/cassette not included
Technical specifications
Max simulated slope: 18%
Max power: 920W at 20 km/h; 2100W at 40 km/h
Flywheel: 4 kg / 8.82 lb
Output metrics: power, speed, cadence
Power supply: input 100–240V 50–60Hz; output 12V 1.5A
Dimensions (open): 580 x 700 x 520 mm / 22.83” x 27.56” x 20.47”
Dimensions (closed): 580 x 210 x 520 mm / 22.83” x 8.27” x 20.47”
Trainer weight: 13 kg / 28.66 lb
Max load: 110 kg / 242.50 lb
